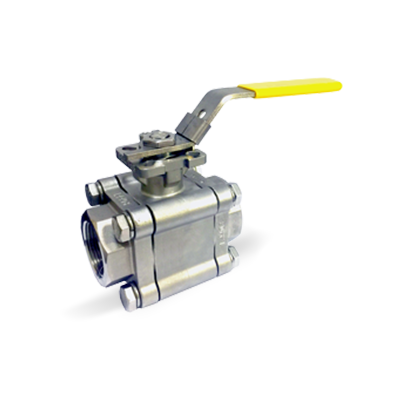

Fire Safe Three Piece Ball Valve - ISO 5211 Direct Mounting
Full / Reduced Bore Ball Valve
Size & Pressure
- 2000PSI (PN140) for 1/4" ~ 1" (DN8 ~ DN25)
- 1500PSI (PN100) for 1-1/4" ~ 2" (DN32 ~ DN50)
- 1000PSI (PN63) for 2-1/2" ~ 4" (DN65 ~ DN100)
End Connection
- Threaded / Socket Weld / Butt Weld / Flanged Ends
Feature
- ISO 5211 Direct Mounting Flange
- Blow-Out-Proof Stem Design
- Anti-Static Device
- 8 Bolts Design
- Handle With Locking Device

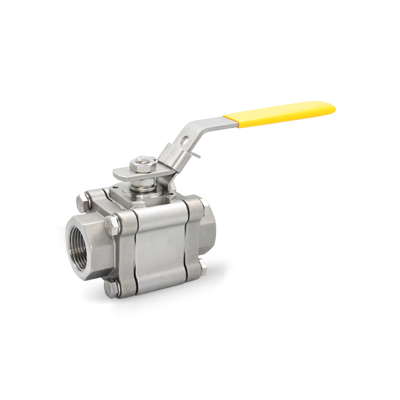

Fire Safe Three Piece Ball Valve
Full / Reduced Bore Ball Valve
Pressure & Size
- V-255FS - 2000PSI ( PN140 ) for 1/4" ~ 1" ( DN8 ~ DN25 ) 1500PSI ( PN100 ) for 1-1/4" ~ 2" ( DN32 ~ DN50 )
- V-255FSA - 2000PSI ( PN140 ) for 1/2" ~ 1-1/4" ( DN15 ~ DN32 ) 1500PSI ( PN100 ) for 1-1/2" ~ 2-1/2" ( DN40 ~ DN65 )
End Connection
- Threaded / Socket Weld / Butt Weld Ends
Feature
- ISO 5211 Mounting Flange (Non-Direct)
- Blow-Out-Proof Stem Design
- Anti-Static Device
- 8 Bolts Design
- Handle With Locking Device

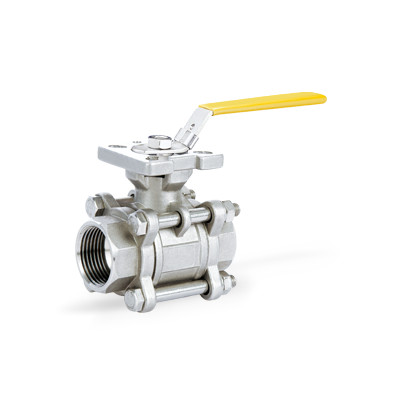

Three Piece Ball Valve - ISO 5211 Direct Mounting
3pc Full Bore Ball Valve
Pressure
- 1000PSI (PN63) for 1/4" ~ 2" (DN8 ~ DN50)
- 800PSI (PN40) for 2-1/2" ~ 4" (DN65 ~ DN100)
Feature
- Investment Casting Construction
- ISO 5211 Direct Mounting Flange
- Blow-Out-Proof Stem Design
- Anti Static Device
- Handle With Locking Device
End Connection
- Threaded / Socket Weld / Butt Weld / Ext. Butt Weld Ends
Material
- Stainless Steel / Carbon Steel
Size
- Full Bore 1/4" ~ 4" (DN8 ~ DN100)

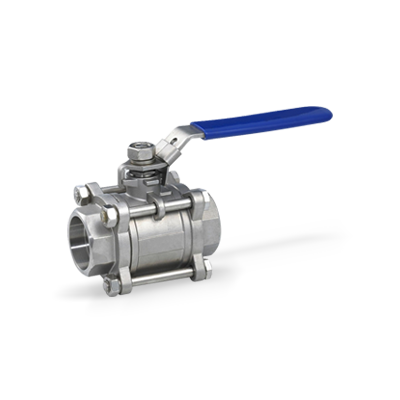

Three Piece Ball Valve
3Pc Full Bore Ball Valve
Pressure & Size
- 1000PSI ( PN63 ) for 1/4" ~ 2" ( DN8 ~ DN50 )
- 800PSI ( PN40 ) for 2-1/2" ~ 4" ( DN65 ~ DN100 )
End Connection
- Threaded / Socket Weld / Butt Weld Ends
Feature
- Investment Cast Body Construction
- In-Line Maintenance
- Blow-Out-Proof Stem Design
- Locking Device ( Option )
- NACE MR0175 is available upon request
- Super Alloy materials for highly corrosive medium are available upon request
