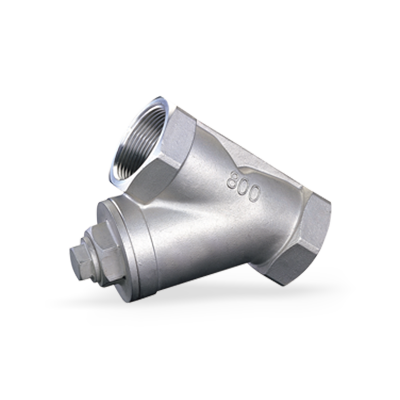

Y Strainers - Threaded / Welded
Size & Pressure
- 800PSI (PN40) for 1/4" ~ 3" (DN8 ~ DN80)
Feature
- Options: Investment Casting Construction / Forged Construction -
- Screen Mesh: 40 ~ 300
- Self-cleaning is completed by opening the plug or valve connected
to the blow-off outlet.
End Connection
- Threaded / Socket Weld / Butt Weld End
Material
- CF8M / SS316 / Duplex
Application
- Steam
- Water
- Chemical
- Oil & Gas

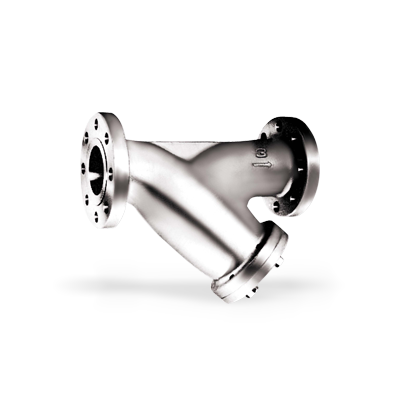

Y Strainers - Flanged
Heavy Duty Y Strainers
Size & Pressure
- PN 40 / PN 60 for DN15 ~ DN400
- Class 150 / Class 300 for 1/2" ~ 16"
- JIS 10K /JIS 20K for 15A ~ 400A
Feature
- Investment Casting Construction
- Screen Mesh: 40 ~ 300
End Connection
- Flanged End
Material
- CF8M
- WCB
- Super Alloy Valves
Application
- Steam
- Water
- Chemical
- Oil & Gas

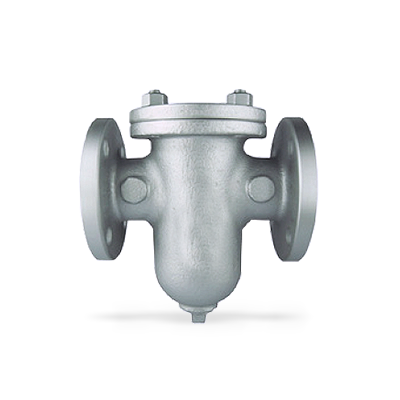

Basket Strainer
Flanged Basket Strainer
Size & Pressure
- Class 150 for 1" ~ 12" (DN15 ~ DN300)
Feature
- Investment Cast Body Construction
- Perforated Screen in 1mm hole for 1" ~ 3" ; 3mm hole for 4" ~ 12"
- Mesh Screen is available upon request
- Mesh Screen size from 20mesh to 400mesh
End Connection
- Flanged Ends, RF
Material
- CF8M
- WCB
- Super Alloy Valves
Application
- Steam
- Water
- Chemical
- Oil & Gas
