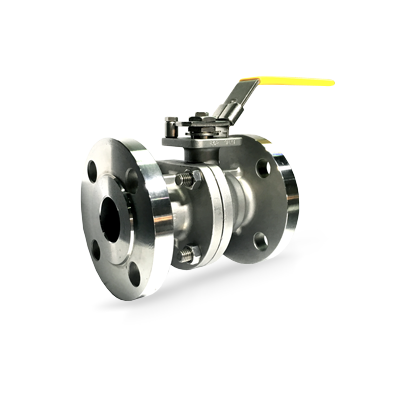

Two Piece Fire Safe Flanged Ball Valve - ISO 5211 Mounting Flanged
Full Bore Ball Valve
Size & Pressure
- Class 150/300/600 for 1/2" ~ 6" ( DN15 ~ DN150 )
- PN16/40 for 1/2" ~ 6" ( DN15 ~ DN150 )
End Connection
- Flanged Ends
Feature
- ISO 5211 Mounting Flange
- Blow-Out-Proof Stem Design
- Anti-Static Device
- Handle With Locking Device

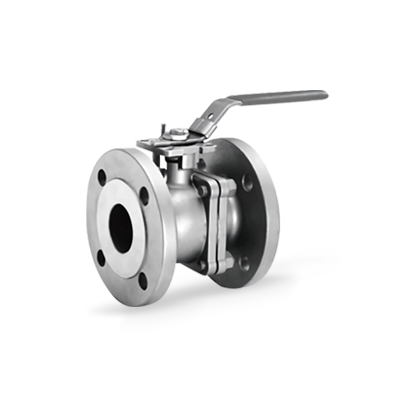

Two Piece Fire Safe Flanged Ball Valve - ISO 5211 Direct Mounting
Full Bore Ball Valve
Pressure & Size
- Class 150/300 for 1/2" ~ 6" ( DN15 ~ DN150 )
- PN16/40 for 1/2" ~ 6" ( DN15 ~ DN150 )
- JIS 10K / JIS 20K , 15A ~ 150A
End Connection
- Flanged Ends
Feature
- ISO 5211 Direct Mounting Flange
- Blow-Out-Proof Stem Design
- Anti-Static Device
- Handle With Locking Device

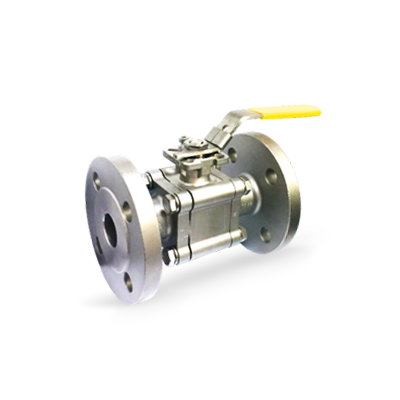

Three Piece Fire Safe Flanged Ball Valve - ISO 5211 Direct Mounting
Full Bore Ball Valve
Pressure & Size
- PN16/40 for 1/4" ~ 2" ( DN8 ~ DN50 )
End Connection
- Flanged Ends
Feature
- ISO 5211 Direct Mounting Flange
- Blow-Out-Proof Stem Design
- Anti-Static Device
- Handle With Locking Device

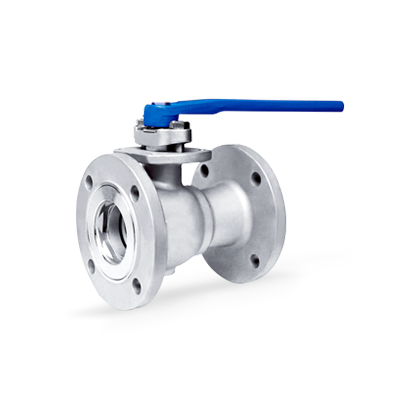

One Piece Fire Safe Flanged Ball Valve - ISO 5211 Mounting Flanged
Pressure & Size
- ANSI Class 150/300
- Reduced Bore 1/2" ~ 6" (DN15 ~ DN150)
Feature
- Investment Casting Construction
- ISO 5211 Mounting Flange ( Non-Direct )
- Blow-Out-Proof Stem Design
- Anti-Static Devic
- Face to Face : ANSI B16.10
- Flange Dimension : ANSI B16.5
- FCD Handle

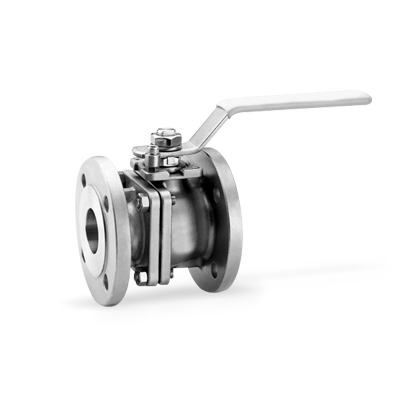

Two Piece Flanged Ball Valve - ISO 5211 Mounting Flanged
Pressure
- Class 150/300/600 for 1/2" ~ 8" (DN15 ~ DN200)
- PN16/40 for1/2" ~ 6" (DN15 ~ DN150)
- JIS 10K / JIS 20K , 15A ~ 150A
End Connection
- Flanged Ends
Material
- Stainless Steel / Carbon Steel
Size
- Full Bore 1/2" ~ 8" (DN15 ~ DN200)
Feature
- Investment Casting Construction
- ISO 5211 Mounting Flange
- Blow-Out-Proof Stem Design
- Anti Static Device
- Handle With Locking Device
