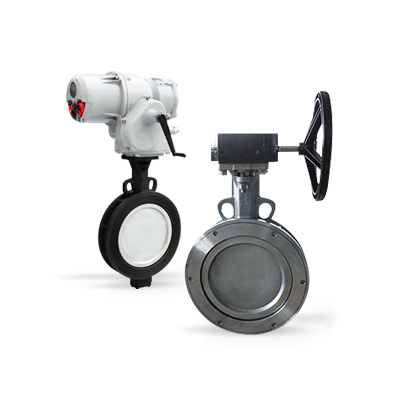

HPerformance Butterfly Valves
Manufactured to ASME 150 and 300 standards, features a soft polymer seat. Customers can specify PTFE, RTFE or UHMWPE seats, depending on their application and the performance characteristics required. Find more well-performanced butterfly valves here in Union Valve.
Introduction of High Performance Butterfly Valve
Primarily designed to meet the stringent requirements and safety levels of the oil & gas industry, this high performance butterfly valve is available in a range of sizes, from 3 inches to 24 inches (DN 80-600). This makes them ideally suited for a host of applications, including firewater, hydrocarbons, cargo handling, bilge and ballasts and utilities, just to name a few.
Manufactured to ASME 150 and 300 standards, features a soft polymer seat. Customers can specify PTFE, RTFE or UHMWPE seats, depending on their application and the performance characteristics required.
The new valve is available in a choice of body materials – carbon steel for general applications, 316 stainless steel and duplex stainless steel for applications requiring superior corrosion resistance.
Application
- Modulating service
- Airport refueling
- Hydrocarbon processing
- Chemical/petrochemical processing
- Purified gas
- Steam and vacuum services
- Power and utilities
- Refrigeration
- HVAC
- Alumina refining
Description
- K-LOK polymer and elastomer seats provide bi-directional, drop-tight shut-off in vacuum as well as at full rated differential pressure. Its unique design does not rely on pressure to assist sealing therefore seals at high and low pressures, as well as dirty services. A variety of materials allows optimum seat life in all applications.
- Blow-out resistant shaft is standard on all valves for increased safety.
- Unique packing design allows for use in pressure as well as vacuum without modification or special assembly.
- Disc taper pins are tangentially positioned half in disc and half in shaft, placing them in compression rather than shear, which eliminates potential for failure.
- Rocker-shaped gland bridge compensates for uneven adjustment of gland nuts reducing packing leaks. Integrally cast disc position stop perfectly locates the disc in seat, achieving maximum seat and seal life.
- Extended neck allows for 50 mm (2″) of pipeline insulation.
- Integrally cast mounting pad provides direct mounting of actuators eliminating the need for costly brackets and couplings.
- Flattened body bore at shaft journal ports positions shaft bearings near disc, providing maximum shaft support resulting in reduced wear and longer life.
Specifications
| Valve Size | 2″-24″ |
|---|---|
| Pressure Class | 150LB 300LB |
| Materials | WCB, CF8 , CF8M, CF3M, |
| Design and Manufacturing Standards | API609 |
| Face to Face Standards | ANSI/ASME B16.10 |
| ANSI/ASME B16.10 | Flange Dimension Standards |
| ANSI/ASME B16.5 | Pressure Test Standards |
| API598 | Fire Safety Test Standards |
| Quality/Product Certifications | ISO9001, ISO14001, ISO18001 |
| Fugitive Emissions | ISO 15848-1, API 622 |
| NACE | NACE MR 0103 NACE MR 0175 |
| Valve operator options | Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator. |
| Shutoff Class | API 598 (Zero Leakage), API 6D |
| Bore | Full Bore |
| Process Connection Types | Wafer type, Lug Type, |
